Diamond Audio Micro Amps
2 · Add to cart
Description

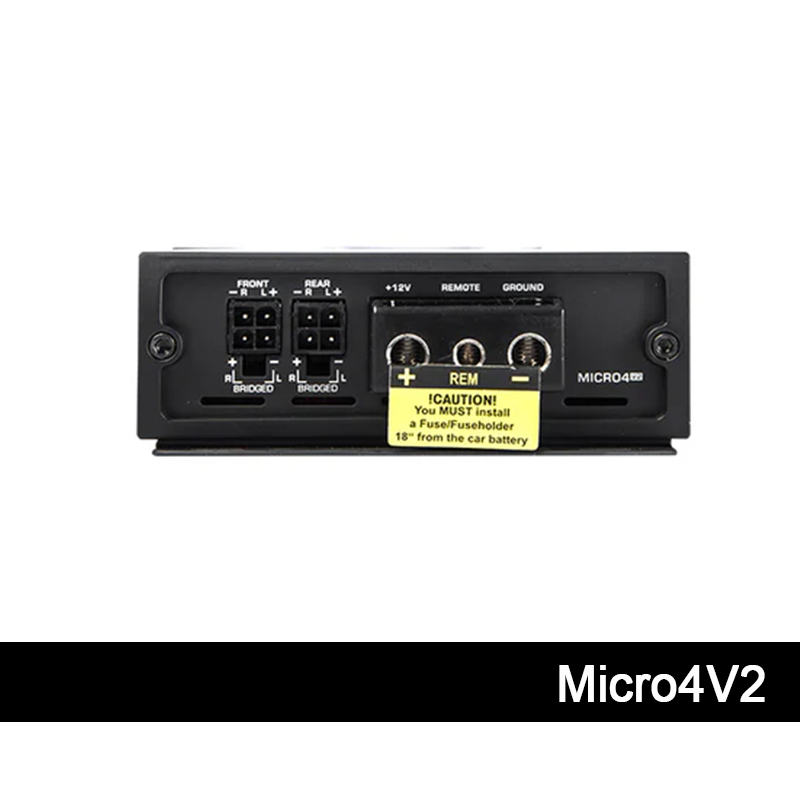

Diamond Audio 4-channel
Class D Amplifier
Discover exceptional sound quality in a compact design with Diamond Audio’s MICROV2 series of amplifiers. Utilizing ultra-efficient full-range Class D topology, these amplifiers deliver impressive power despite their small size. The MICROV2 series also features advanced Rollback/Thermal protection, ensuring continuous and uninterrupted play without any risk of shutdown.
The installation possibilities are endless with the MICROV2 series! These amplifiers boast an ultra-compact, high-density aluminum alloy chassis, making them versatile and easy to fit in any setup. Balanced differential inputs ensure noise-free operation, while full-range digital Class D technology with Direct FET power MOSFET output stage guarantees top-notch performance.
With 12dB per octave adjustable crossovers, Diamond bass boost EQ (12dB @ 45Hz), and advanced rollback power circuitry to keep your amp cool, the MICROV2 series keeps your music playing smoothly. The selectable 3-option Auto Turn-On Mode circuit is designed to work with any OEM head unit, simplifying installation and making it more convenient.
When you need quality and performance in a small package, look no further than the MICROV2 series from Diamond Audio. Upgrade your audio system today and experience the perfect blend of power, efficiency, and flexibility.
Additional information
SPECIFICATIONS
- 150W x 4 @ 2Ω
- 80W x 4 @ 4Ω
- 300W x 2 @ 4Ω Bridged
- Input Sensitivity: 0.2-10 Volt
- Crossover Filter : 40-400Hz, 12dB Per Octave Slope
- Frequency Response: 10-33KHz
- Selectable REM / VOX / DC Turn On Modes
- Selectable X-Over: LPF / FLAT / HPF
- Selectable 2CH / 4CH Input Modes
- Dimensions: 9.1” x 4.1” x 1.46” / 230.5 x 103 x 37.2 mm
- Disconnected RCA Input & Speaker Output Harness Kits Included
- 250W x 2 @ @ 4Ω RMS BRIDGED
- 125W x 4 @ 2Ω
- 90W x 4 @ 4Ω
- ALL-WEATHER APPLICATION
- Input Sensitivity: 0.2-10 Volt
- Crossover Filter : 40-400Hz, 12dB Per Octave Slope
- Frequency Response: 10-33KHz
- Selectable REM / VOX / DC Turn On Modes
- Selectable 2CH / 4CH Input Modes
- Dimensions: 9.1” x 4.1” x 1.46” / 230.5 x 103 x 37.2 mm
- Disconnected RCA Input & Speaker Output Harness Kits Included
Details (click to open) (tap to open)
The Diamond Audio MicroV-series of amps offers the option of high-level inputs (and RCA, low level, too) which makes it a perfect solution for those wanting more sound while retaining their factory radio!
