Saddlebag LoRise Speaker Mounts
BEFORE ORDERING VERIFY PART COMPABILITYVIEW INSTALLATION INSTRUCTIONS
$109.00
Available on backorder
Sold as a Set (includes Left & Right)
VIEW INSTALLATION INSTRUCTIONS
$109.00
Available on backorder
Sold as a Set (includes Left & Right)

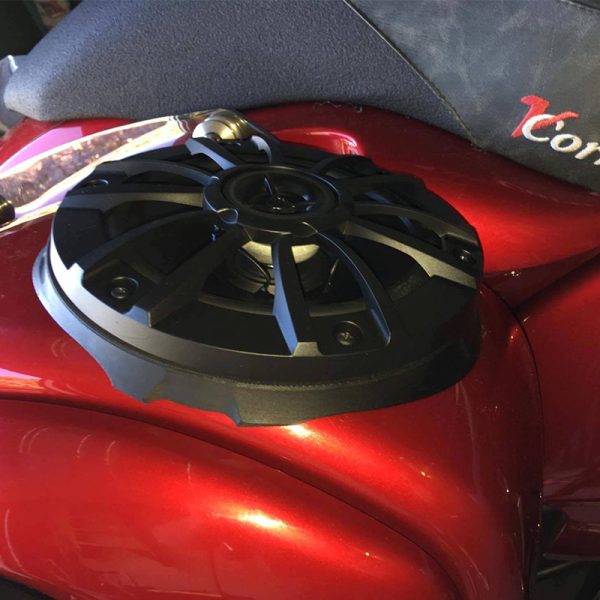

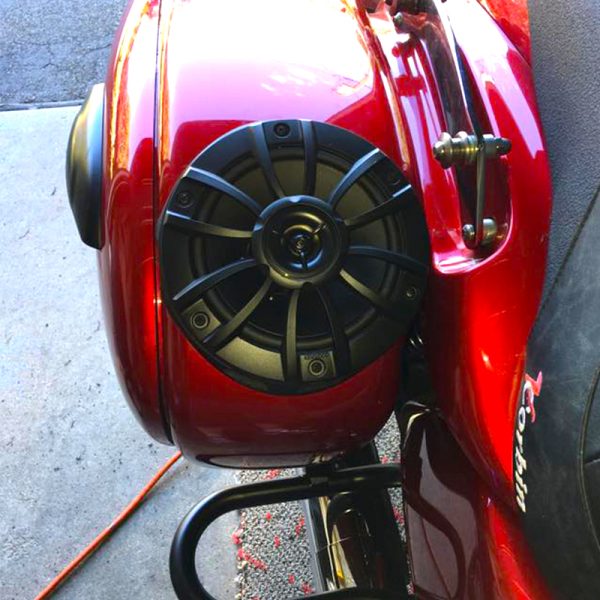

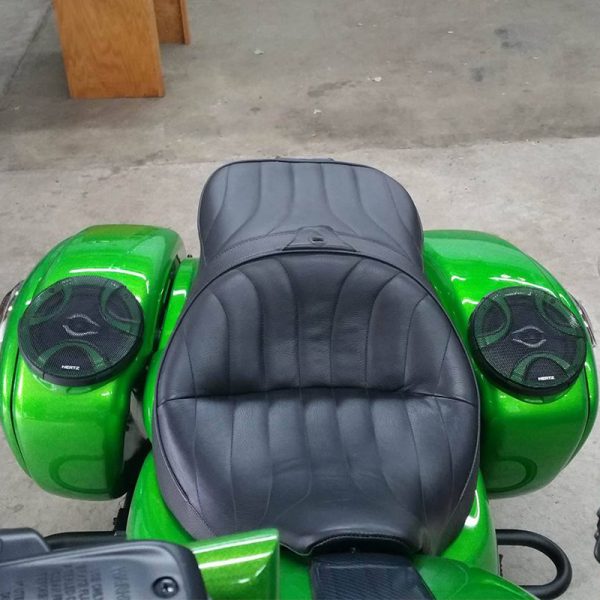

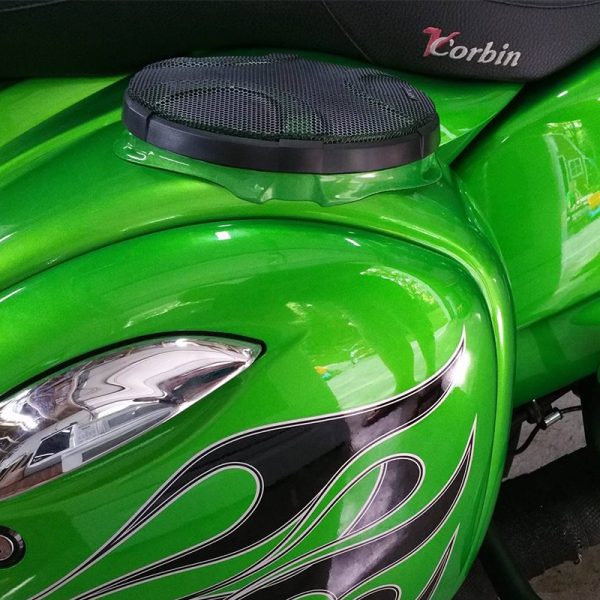

Do you want rear speakers for your Vaquero or Nomad with side-open bags? Designed to perfectly match the form on the rear, side-open saddlebags found on the 1700 Vaquero and 1500/1600 Nomads, these allow the installation of 6-1/2″ speakers to help enhance the sound stage on your bike. Drilling into the bag is required but the groove on the underside of these allow them to be sealed from the elements.
| Tech Specs | |
|---|---|
| Size | Fits 6-1/2″ speakers |
| Material | ABS |
| Manufacturing | Additive (3D) |
| Color | Black |
We have not tested all of these but customer feedback states the following speakers will fit without modification (uos). Not all listed are marine grade. We do not recommend drilling your own mounting holes in the adapters.
Kicker
PS6.5
DS6.5
40CS654
KM604W
Alpine
Type R
MMats
PS65CX
Hertz
ECX165.5
HCX165.5
HSK165
Kenwood
KFC-1653MRG (6-bolt)
Polk Audio
MM651
DB651
MM651UM
MM605
MM652
MM1
Infinity
612m (5-bolt)
Kappa 62.11
Rockford Fosgate
RM0652B
RM1652B
JBL
GX600
GX602
JL Audio
MX650
Will NOT fit the following:
Polk Audio MM651s (while “s” is for slim, the mounting bolt pattern is different)
Questionable: These are reported to not fit the fairing adapters but unclear if they will fit the saddlebag mounts.
Kenwood KFC-650
We will continue to update models as we discover their compatibility.
Toby Romack (verified owner) –
Bought these for my 2011 Kawasaki Vaquero and they fit perfect. Look great and a breeze to install. Only con would be to make them a one piece instead of two piece. Thanks Randy, I will be ordering the fairing adapters as soon as I decide on the speakers.
Matt Young (verified owner) –
Perfect fit and easy to work with. Looks amazing installed and makes installing rear speakers amazingly simple. No fiberglassing and sanding. Don’t even need to paint anything. Install in less than an hour.
Paul Brown (verified owner) –
Perfect Fit and so simple to install. My speakers are JBL Club Marine MS65LB RGBs. The fit perfect. I did not even want to paint them either.
Andy Vann (verified owner) –
Not really to thrilled with the product has jagged edges not smooth as shown in the picture some spot look like they have been over heated and deformed cuasing it not to sit flush
admin –
The back of the mount rings are formed to match the top of the saddlebag and fit tight. In addition they have a built-in slot to add silicon or other sealer to prevent water from entering the bag. The build-up of the 3D print layers look very smooth on the topside, but do appear more “rough” on the lower side but this does not create any issues for the installation, fit or sealing of the rings to the bag.
Frank Suarez (verified owner) –
They are very cheap 3D printed don’t even come painted I had to paint them with 5 coats you can still see the stacked lines from the 3D printer in my opinion they look like they cost more like 30 definitely not worth the 100
admin –
ANY 3D printed objects should be sanded prior to painting. Not only to smooth out the texture, but to promote paint adhesion.
