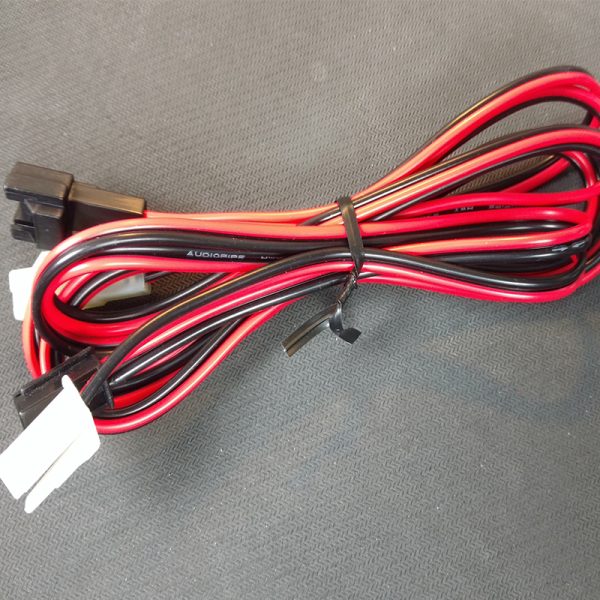

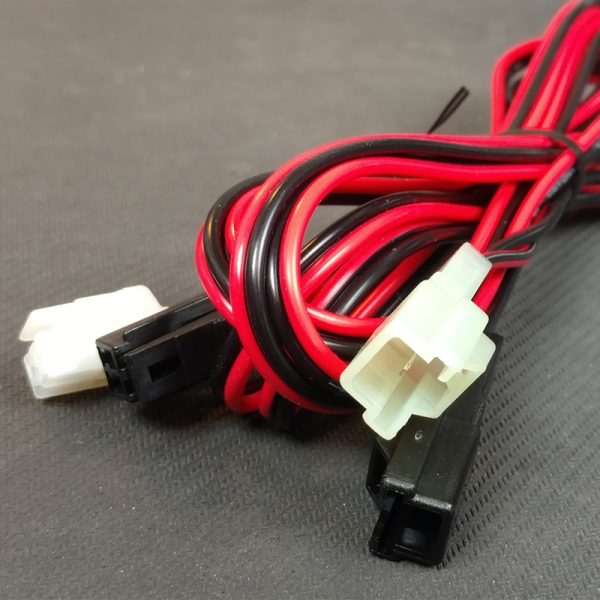

Front speaker wiring kit (for amp with factory radio)
$27.00
Are you looking to install an amp but keep your factory radio? This kit will help you to route the signal into the amp and back to your speakers. Whether you keep the factory speakers, replace them with 5.25″ or upgrade to 6.5″ aftermarket speakers using Engineered Adapters 6.5″ Fairing Adapters, this kit simply snaps into the factory wiring allowing you to route the signal from the head unit to the amp and back to the speakers. This allows the installation of the amp without cutting any factory wiring! Your amp will need high-level inputs (most allow high-level an low-level). You can use a line converter if your amp only has RCA (low level) input.
This kit is specifically made for wiring up the speakers when installing an amplifier in your Voyager or Vaquero but you are KEEPING the factory radio! Since this kit allows the amp to be installed without cutting the factory wiring this will not affect your ability to add an aftermarket stereo in the future using our Wiring Harness Plug!
In stock
Description
Fits 2009-2021 Voyager (all models)
Fits 2011-2021 Vaquero (all models)
Harry Tom (verified owner) –
Excellent product which made installation very easy.
Bit difficult to understand proper use in text so here is my shot at explaining the procedure (for a Vaquero)
After removing front cowl, follow procedure for both speaker connections:
1. Disconnect speaker from the wire harness (which connects to the head unit) and set speaker side connected wire to the side
2. Connect head unit side connected wire to one end of the Engineered Adapters (EA) cable. (only one side will fit )
3. Cut other end of the EA cable to desired length to reach (and splice into) the appropriate Molex amp INPUT connector. The connector at the other end of the cut cable will be used to connect to the speaker harness (going to speaker). Molex connectors for both input and output should come with your amp
4. After connecting the cut cable connector to the speaker harness, splice the other end’s wires to the appropriate Molex amp OUTPUT connector wires.
5. Hook up power and ground to finish amp install.
So basically you’re cutting the EA cables as one end enables head unit connection to the amp and the other end allows amp output to the speakers.
Thanks Randy!
